Get physio data

Let’s start by adding the necessary packages. This is not yet an official python package, so the pycequeau folder need to be added using the next code block:

[ ]:

import os
from pycequeau import physiographic, meteo
import matplotlib.pyplot as plt

Before start using the toolbox, you need to set up the working directory project. To do so, we need to run this code lines and the toolbox will create the project folder structure as follows:

Project/
|-- geographic/
|-- meteo/
|-- results/

[ ]:

project_folder = r"path/to/your/project/"
files_list = ["BurnedDEM.tif", # DEM tif file
                "FAC.tif", #Flow accumulation tif file
                "LCF.tif", # Land conver tif file
                "Watershed.tif", # Watershed tif file
                "CAT.tif" #Sub basins tif file
                ]

# 2- Create basin Object:
basin = physiographic.Basin(project_folder,
                "Margarite",
                files_list)

In this point, you need to place all the files contained in the list files_list into the geographic folder. It is very straight forward to use the toolbox by running the next chain of instructions.

[17]:

# 3 - Select Fisnet dimensions. This dimenssions are given in m
basin.set_dimensions(1500, 1500)

[18]:

# 4 - Create CE and CP fishnet
basin.create_CEfishnet()
basin.create_CPfishnet()

c:\Users\erinc\anaconda3\envs\test_pycequeau\lib\site-packages\pyogrio\raw.py:723: RuntimeWarning: Value 2121520258.4987414 of field area of feature 0 not successfully written. Possibly due to too larger number with respect to field width
  ogr_write(
c:\Users\erinc\anaconda3\envs\test_pycequeau\lib\site-packages\geopandas\tools\overlay.py:358: UserWarning: `keep_geom_type=True` in overlay resulted in 53 dropped geometries of different geometry types than df1 has. Set `keep_geom_type=False` to retain all geometries
  result = _collection_extract(result, geom_type, keep_geom_type_warning)

[19]:

# 5 - Remove the small CPs in the basin
basin.polish_CPfishnet()

[20]:

# 6 - Do the routing process
basin.CP_routing()

c:\Users\erinc\anaconda3\envs\test_pycequeau\lib\site-packages\geopandas\geodataframe.py:257: UserWarning: Pandas doesn't allow columns to be created via a new attribute name - see https://pandas.pydata.org/pandas-docs/stable/indexing.html#attribute-access
  super().__setattr__(attr, val)
c:\Users\erinc\anaconda3\envs\test_pycequeau\lib\site-packages\pycequeau\physiographic\base.py:517: UserWarning: Column names longer than 10 characters will be truncated when saved to ESRI Shapefile.
  self.CPfishnet.to_file(self._CPfishnet)
c:\Users\erinc\anaconda3\envs\test_pycequeau\lib\site-packages\pyogrio\raw.py:723: RuntimeWarning: Normalized/laundered field name: 'cumulPctSurf' to 'cumulPctSu'
  ogr_write(

NOTE: If you wish to compute the mean slope in each CE, you need to provide the Slope.tif file in the geographic folder before executing the following lines. The slope can be compute either using QGIS or GRASS-GIS. If you do not need this, ignore this NOTE

[21]:

# 7 - Create the carreaux entiers structure
basin.carreauxEntiers_struct()

[22]:

# 8 - Create carreux partiels structure
basin.carreauxPartiels_struct()

c:\Users\erinc\anaconda3\envs\test_pycequeau\lib\site-packages\pycequeau\physiographic\carreauxPartiels.py:148: FutureWarning: Setting an item of incompatible dtype is deprecated and will raise an error in a future version of pandas. Value 'CP1 to CP0' has dtype incompatible with float64, please explicitly cast to a compatible dtype first.
  df_line.loc[i, "names"] = f"CP{i} to CP{cp_aval}"
c:\Users\erinc\anaconda3\envs\test_pycequeau\lib\site-packages\pycequeau\physiographic\carreauxPartiels.py:198: UserWarning: Column names longer than 10 characters will be truncated when saved to ESRI Shapefile.
  gpdf_line.to_file(streams_file)
c:\Users\erinc\anaconda3\envs\test_pycequeau\lib\site-packages\pyogrio\raw.py:723: RuntimeWarning: Normalized/laundered field name: 'azimutCoursEau' to 'azimutCour'
  ogr_write(
c:\Users\erinc\anaconda3\envs\test_pycequeau\lib\site-packages\pycequeau\physiographic\base.py:815: UserWarning: Column names longer than 10 characters will be truncated when saved to ESRI Shapefile.
  self.CPfishnet.to_file(self._CPfishnet)
c:\Users\erinc\anaconda3\envs\test_pycequeau\lib\site-packages\pyogrio\raw.py:723: RuntimeWarning: Normalized/laundered field name: 'cumulPctSurf' to 'cumulPctSu'
  ogr_write(

[23]:

# 8 - Create the bassinVersant structure
basin.create_bassinVersant_structure()

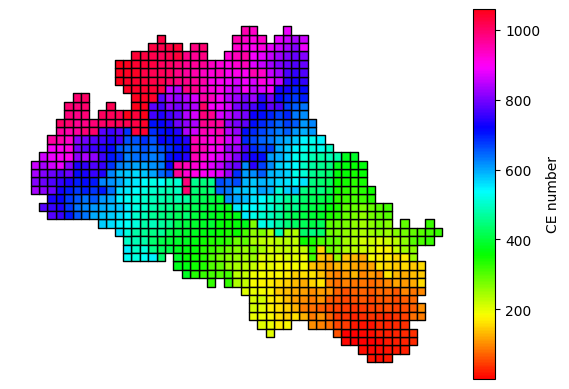

Now, let’s graph some of the obtained results. First, we will plot the CE fishnet renumbered with the correct CE id

[24]:

import geopandas as gpd
import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1 import make_axes_locatable
import os
CE_fishnet = gpd.read_file(os.path.join(project_folder,"geographic","CE_fishnet.shp"))
CE_fishnet.head()

[24]:
CEid newCEid altitude i j geometry
0 1558 1 120.53025 48 12 POLYGON ((428986.989 5347816.221, 430473.475 5...
1 1557 2 253.60094674556214 48 13 POLYGON ((428986.989 5349302.707, 430473.475 5...
2 1598 3 56.58417159763314 49 12 POLYGON ((430473.475 5347816.221, 431959.961 5...
3 1517 4 250.0989349112426 47 13 POLYGON ((427500.504 5349302.707, 428986.989 5...
4 1638 5 76.2698298816568 50 12 POLYGON ((431959.961 5347816.221, 433446.447 5...
[25]:

fig, ax = plt.subplots(1, 1)
divider = make_axes_locatable(ax)
cax = divider.append_axes("right", size="5%", pad=0.1)
# Axis
CE_fishnet.plot(column='newCEid', cmap='hsv', ax=ax, legend=True, cax=cax,
                legend_kwds={'label': "CE number",
                        'orientation': "vertical"},
                edgecolor='black')
ax.set_axis_off();
../_images/physiographic_get_physio_15_0.png

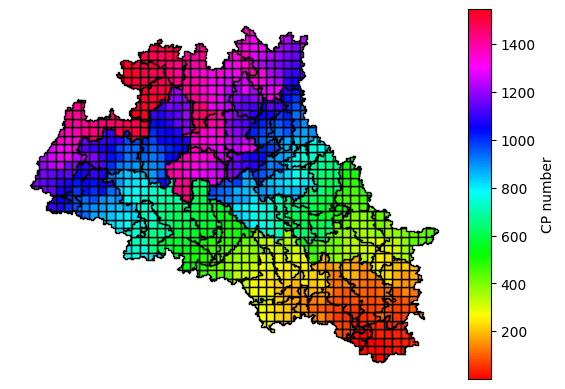

Now, let’s do the same with the CP fishnet

[26]:

CP_fishnet = gpd.read_file(os.path.join(project_folder,"geographic","CP_fishnet.shp"))
CP_fishnet.head()

[26]:
CEid raster_val validity CATid Area Dissolve maxFAC CPid newCPid newCEid pctSurface cumulPctSu cumulArea altitude x_c y_c i j geometry
0 1558 310.0 Valid Geometry 9.0 1.765097e+06 0 4055492.0 1332 1 1 79.881657 95906.958580 2119.198698 120.53025 429836.425875 5.347181e+06 48 12 POLYGON ((430473.475 5347816.221, 430473.475 5...
1 1557 308.0 Valid Geometry 1.0 1.396388e+05 0 1297.0 1295 2 2 6.319527 40.236686 0.889086 265.0936329588015 429277.391622 5.347933e+06 48 13 POLYGON ((428986.989 5347816.221, 428986.989 5...
2 1598 388.0 Valid Geometry 3.0 1.422538e+06 0 4049534.0 1363 3 3 64.378698 95771.266272 2116.200386 51.55072954963235 431047.739728 5.346993e+06 49 12 POLYGON ((430976.594 5347770.483, 430953.725 5...
3 1517 308.0 Valid Geometry 1.0 4.429740e+05 0 1254.0 1293 4 4 20.047337 33.917160 0.749447 270.6304604486423 428575.981681 5.348134e+06 47 13 POLYGON ((428986.989 5347816.221, 428369.526 5...
4 1638 388.0 Valid Geometry 9.0 2.209640e+06 0 2146573.0 1371 5 5 100.000000 50777.704142 1122.004556 76.2698298816568 432703.204045 5.347073e+06 50 12 POLYGON ((431959.961 5347038.674, 431959.961 5...
[27]:

fig, ax = plt.subplots(1, 1)
divider = make_axes_locatable(ax)
cax = divider.append_axes("right", size="5%", pad=0.1)
CP_fishnet.plot(column='newCPid', cmap='hsv', ax=ax, legend=True, cax=cax,
                legend_kwds={'label': "CP number",
                        'orientation': "vertical"},
                edgecolor='black')
ax.set_axis_off();
../_images/physiographic_get_physio_18_0.png

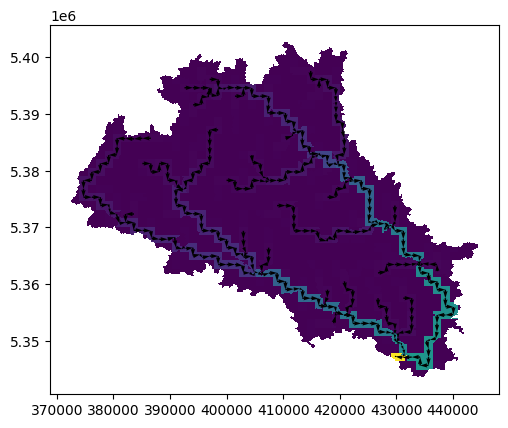

If you want to see the flow structure of your basin, run the folowing instruction:

[28]:

basin.plot_routing()
../_images/physiographic_get_physio_20_0.png

The bassinVersant strcuture is saved as a .json file that contains all the information to make the CEQUEAU model run in the Matlab environment. The translation routines of the .json file to Matlab structure can be found here
